Temperature Transmitters

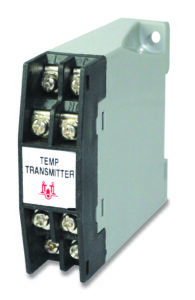

DINRAIL MOUNTABLE TRANSMITTER
Temperature Sensor: PT 100, Thermocouples (J, K, R, S, T, B, E, N -Types)
Range: As per customer’s requirement
Output:2/3/4 wire 4-20 mA
Total Accuracy: ±1°
Resolution: 0.1 mA
Response Time: <500 ms
Power Supply: 12 to 32 V DC
Humidity : 0 to 90%RH
Weight: 50 Grams

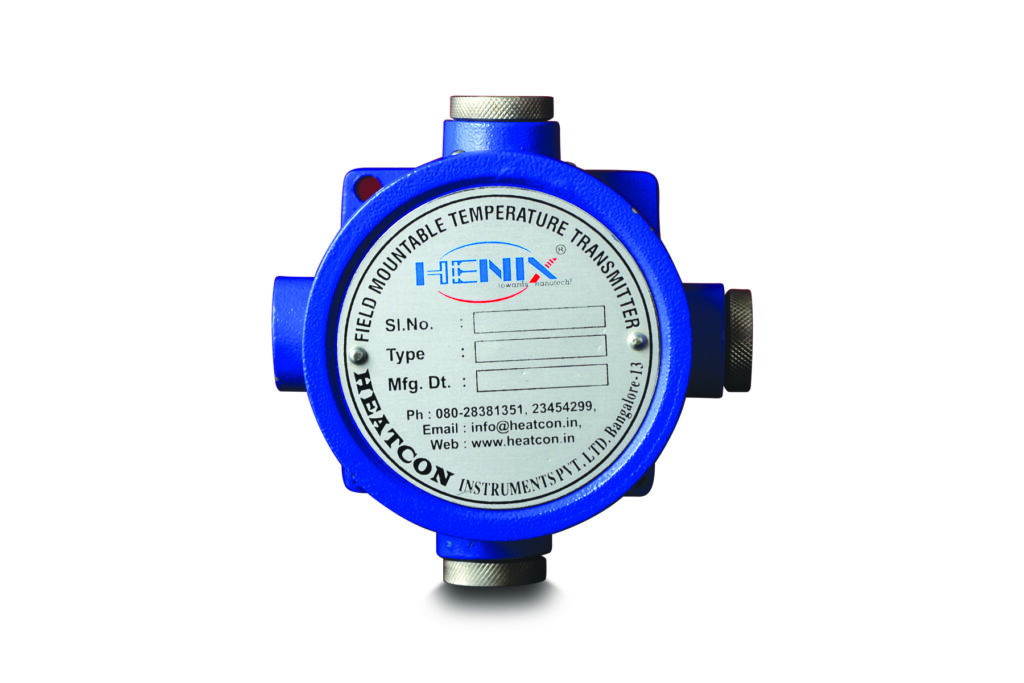

FIELD MOUNTABLE TRANSMITTER
Features : This product is a specially designed temperature transmitter. It can be used anywhere irrespective of climatic conditions.
Temperature Sensor : PT 100, Thermocouples (J, K, R, S, T, B, E, N -Types)
Range : As per customer’s requirement
Output :2/3/4 wire 4-20 mA
Total accuracy : ±1°C
Resolution : 0.1 mA
Response Time : <500 ms
Power Supply : 12 to 32 V DC
Humidity : 0 to 90%RH

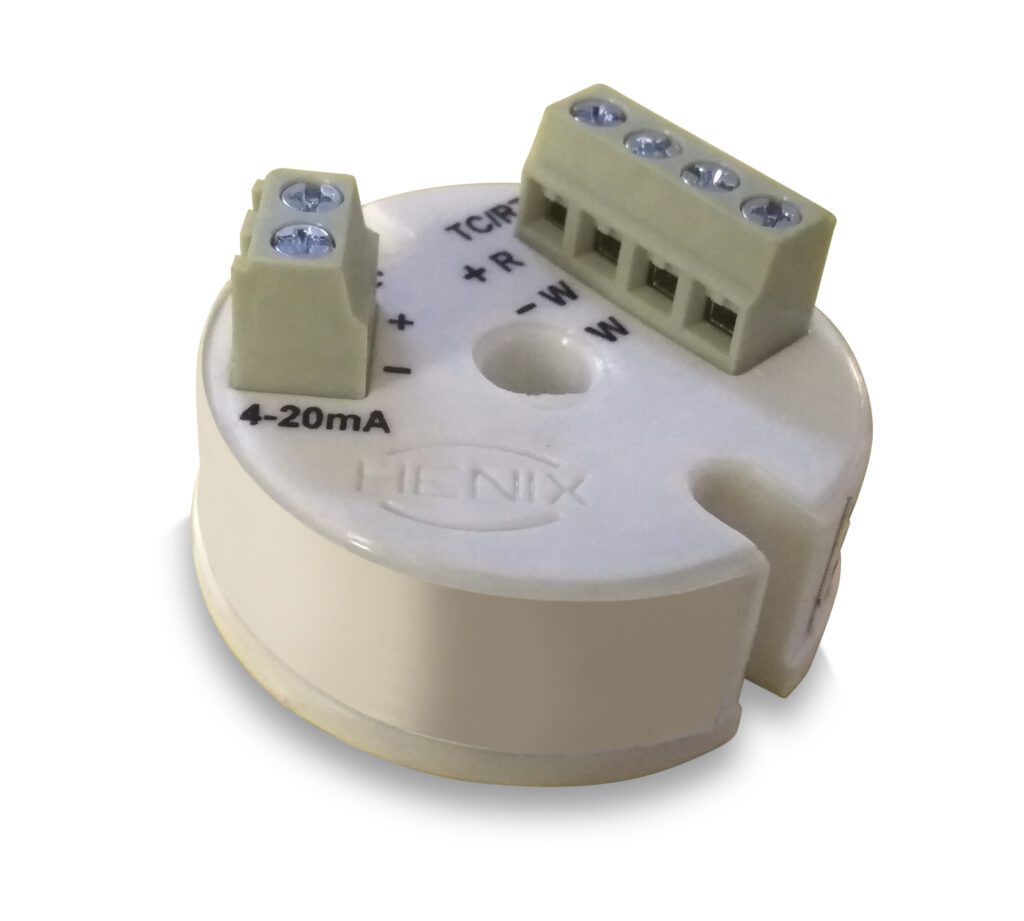

HEAD MOUNTED TEMPERATURE TRANSMITTER
Temperature Sensor can used : PT 100, Thermocouples (J, K, R, S, T, B, E, N -Types)
Range : 0 – 100°C
Output :2 wire 4-20 mA
Total accuracy : ±1°C
Resolution : 0.1 mA
Response Time : <500 ms
Power Supply : 12 to 32 V DC
Humidity : 0 to 90%RH
Weight : 50 Grams
